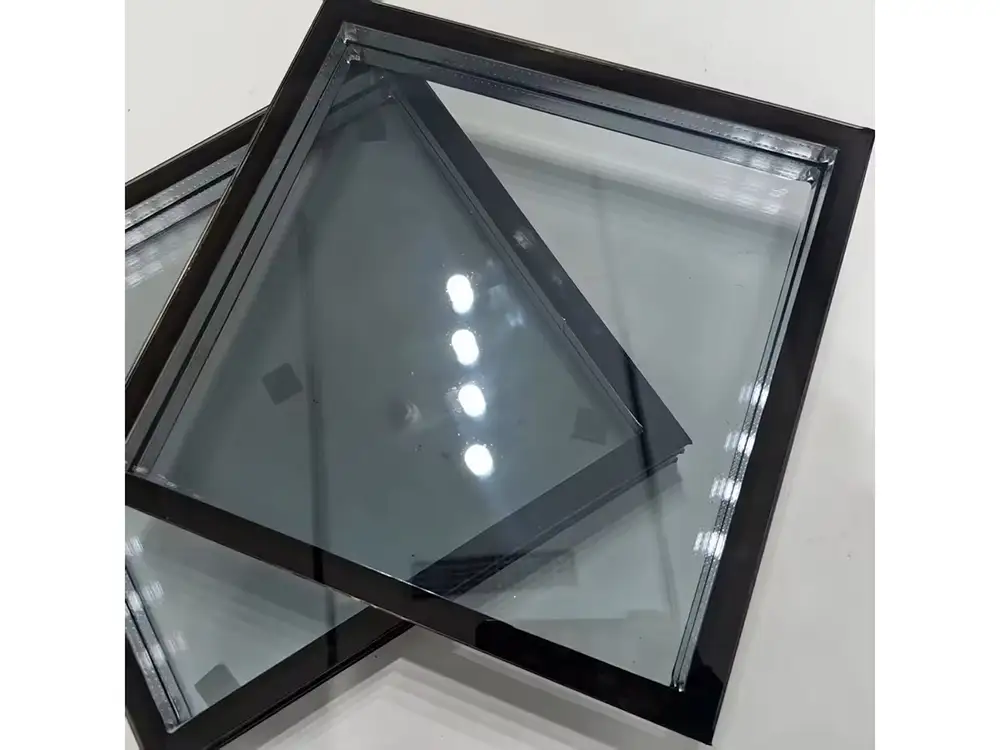

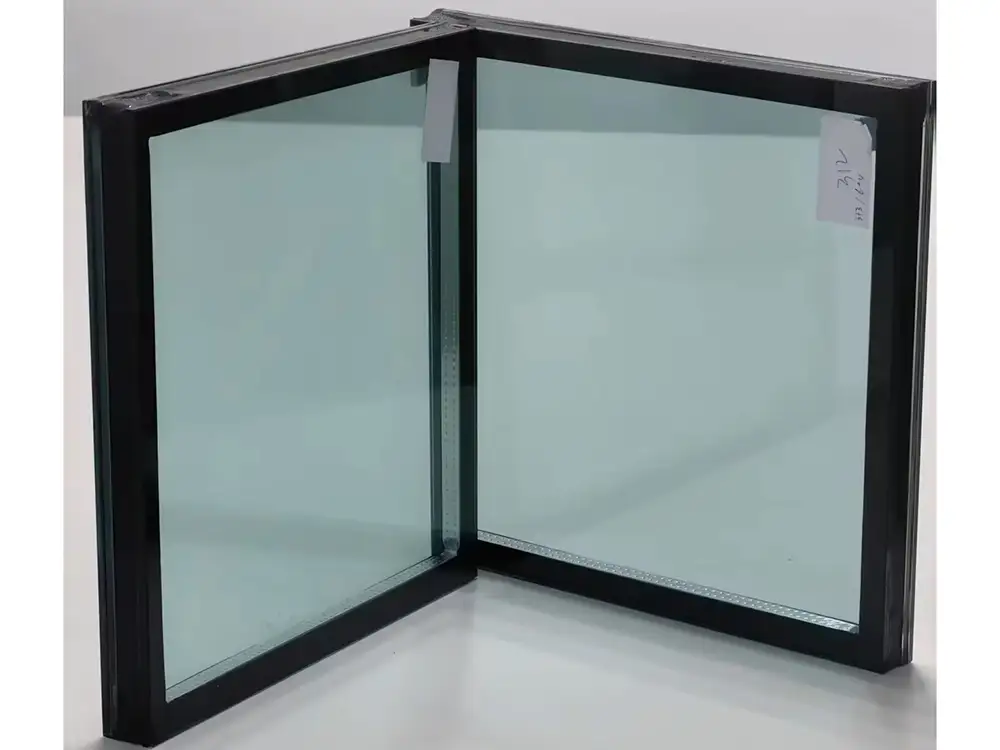

Triple Insulated Glass Technical Parameters
Triple Insulated Glass is a type of insulated glass that has three single panes of glass separated by argon gas, which means it has an extra layer of glass to insulate your home over double glazing. This extra layer makes it more difficult for heat to escape, allowing you to effortlessly maintain the temperature in your home.

As well as providing a warmer home in the winter months, triple glazing also reduces energy bills by preventing heat loss. After installing triple glazing you’ll notice a significant difference in your bills as well as the overall comfort of your home – especially throughout the winter months. In fact, triple glazing is five times more efficient than single glazing – imagine the difference that could make to your home!

Component of SZG Insulated Glass

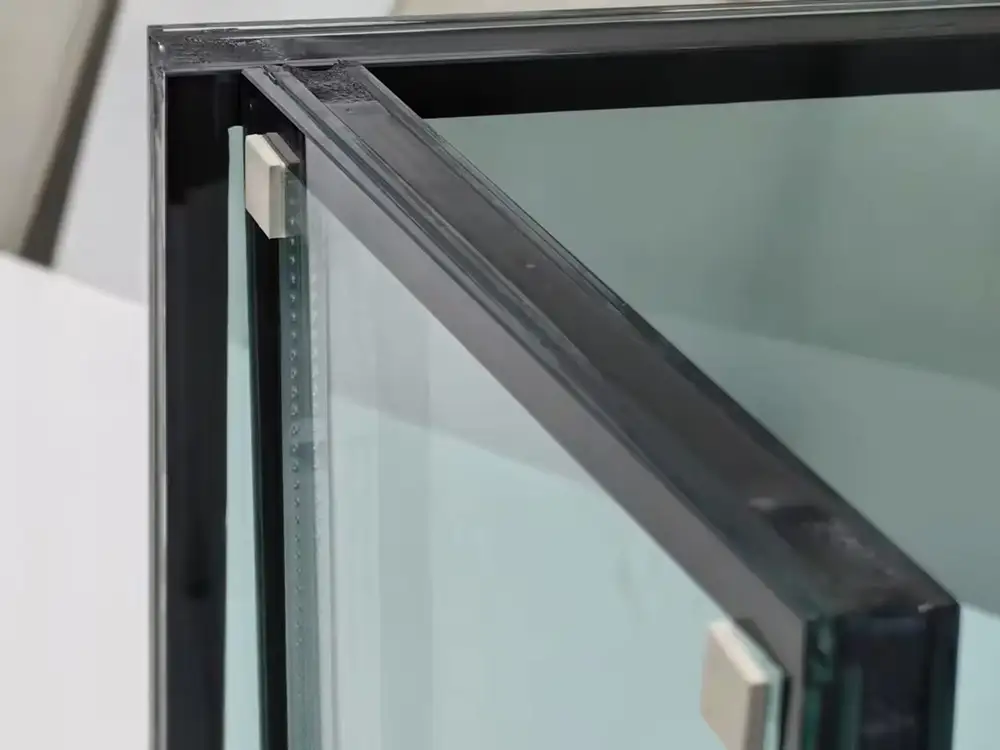

1. We process insulated glass by using best quality float glass, Butyl sealant, strength adhesive, molecular sieve etc raw material.2. The warm-edge is built by Super-Spacer® technology between the insulated glass panes to prohibit the transfer of heat.
3. Sealant should be double-layer and the thickness should be greater than or equal to 5mm.
4. Inspection on the primary sealant, heat rise test for desiccant, humidity and fog determination test etc must be carried out during processing.

Insulated Glass Application: Insulated glass as a kind of energy-saving glass, widely used for facades, curtain walls, skylights, green house, windows, doors, office partition, etc.
Product Name
Insulated Glass
Place of Origin
Weifang,Shandong,China
Common total glass thickness
5+9A+5,6+12A+6, 6+16A+6,8+12A+8,8+16A+8,etc.
Glass Thickness
4mm, 5mm, 6mm, 8mm,10mm,12mm, 15mm,19mm
Aluminum Strip Width
6mm,9mm,12mm,15mm,16mm,19mm,24mm
Insulating Gas
Air or Argon
Size
Minimum Size 300*300mm
 Maximum Size 3000*5000mm

Glass Type
Clear: Clear or ultra clear
Colored: Green, Grey, Blue, Brown, Painted
Low-E: Single silver or double silver
Quality Standard
CE,SGS,CCC,ISO9001
Note: Weihua glass can be customized according to the given specifications and colors from clients.
