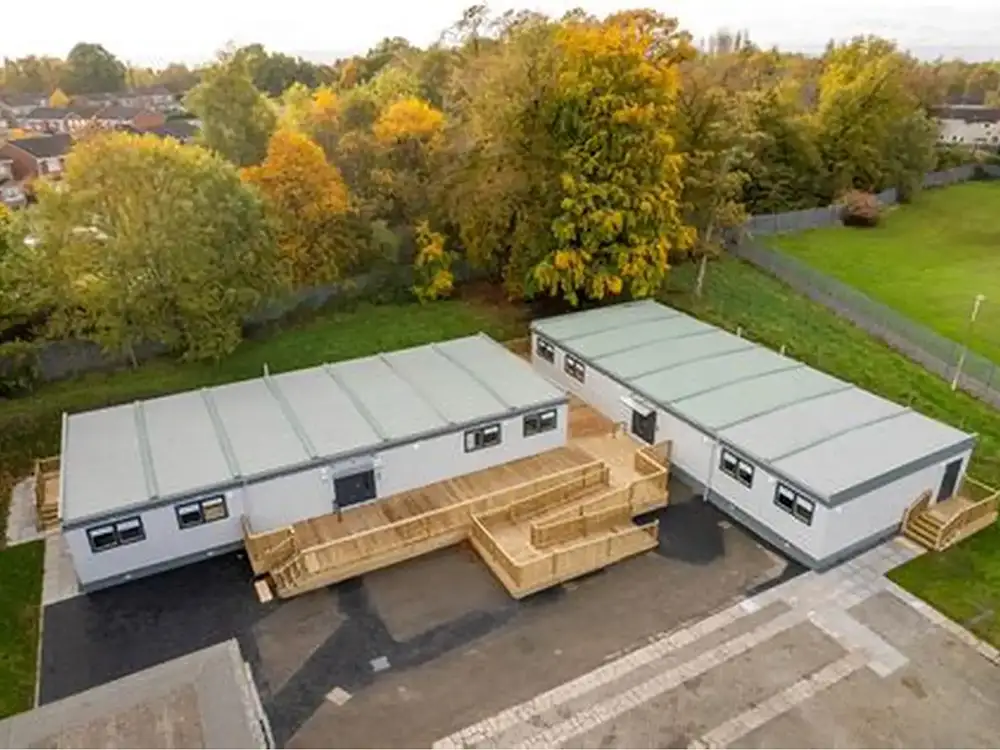

Modular school buildings have become a modern and efficient solution for educational institutions seeking flexible, cost-effective, and high-quality construction alternatives. As the demand for additional classrooms, administrative spaces, and educational facilities continues to grow, modular construction offers a practical approach that meets both short-term and long-term needs. Designed for rapid deployment and adaptability, modular school buildings are widely used by schools, colleges, and training centres around the world.
One of the most significant advantages of modular school buildings is the speed of construction. Traditional construction projects can take months or even years to complete, often causing disruptions to school operations. In contrast, modular buildings are prefabricated in a controlled factory environment, where each unit is produced with precision and strict quality control. Once completed, the modules are transported to the site and assembled quickly, significantly reducing construction time and allowing schools to expand their facilities without major delays.
Safety is a top priority in educational environments, and modular school buildings are designed to meet strict safety standards. High-quality materials, fire-resistant components, and robust structural systems ensure a safe and secure learning environment for students and staff. Features such as proper ventilation, natural lighting, non-toxic finishes, and safe access points contribute to a healthy and comfortable atmosphere that supports effective learning.
|
Frame Structure: |
Project |
Specifications |
Unit |
Quantity |
|
Top Frame: |
Top Long Beam: 2mm Galvanized Steel, Top Frame 180mm |
Pieces |
4 |
|
Top Short Beam: 2mm Galvanized Steel, Top Frame 180mm |
Pieces |
2 |
|
Bottom Frame: |
Bottom Long Beam: 2mm Galvanized Steel, Bottom Frame 160mm |
Pieces |
4 |
|
Bottom Short Beam: 2mm Galvanized Steel, Bottom Frame 160mm |
Pieces |
2 |
|
Columns: |
Column: 2mm C-shaped Galvanized Steel, 160*160mm |
Pieces |
4 |
|
Bolts: M12*25mm High-strength Carriage Bolts |
Set |
64 |
|
Angle Heads: |
160*160mm, Wall Thickness 4.0mm |
Set |
8 |
|
Powder Coating: |
Powder Coating: |
Electrostatic spray process, does not fade for 5 years |
Suite |
1 |
|
Pressing Slot |
Top Beam Pressing Slot: Alloy Profile Thickness 1.0mm |
Pieces |
2 |
|
Top Short Beam Pressing Slot: Alloy Profile Thickness 1.0mm |
Pieces |
2 |
|
Square Tube System |
Chassis Purlin |
50mm*100mm Galvanized Square Tube, Thickness 1.2mm |
Pieces |
9 |
|
Top Plate Purlin |
50mm*50mm Galvanized Square Tube, Thickness 1.5mm |
Pieces |
2 |
|
50mm*50mm Galvanized Square Tube, Thickness 1.1mm |
Pieces |
1 |
|
40mm*60mm Galvanized Square Tube, Thickness 1.1mm |
Pieces |
6 |
|
Door Frame Column |
20mm*40mm Galvanized Square Tube, Thickness 1.1mm |
Pieces |
1 |
|
Wall |
Rock Wool Wall Panel |
Color steel composite board thickness 50mm, color steel double-sided thickness 0.3 mm, PE film attached, white color, double-sided
ribbed; PU sandwich panel |
set |
1 |
|
Door & Window |
Steel Door |
Steel package door, size ≥ W925 mm × H2035 mm, fire door lock |
piece |
1 |
|
External Window |
PVC window with double glass, 0.93*1.2 m |
pieces |
2 |
|
Other |
Interior Floor |
Bulu Board Thickness: 1.5m |
pieces |
4 |
|
Roof Waterproof Tile |
Single-layer Color Steel Waterproof Tile with Interlocking Thickness: 0.3mm |
sheets |
5 |
|
Roof Insulation Layer |
Glass Wool Roll, Thickness: 40mm, Density: 20kg/m3, Non-combustibility Class A |
roll |
1 |
|
Interior Ceiling Tile |
0.3 mm double-layer color steel 831 type corrugated tile |
sheets |
5 |
|
Other Auxiliary Materials |
Includes all standard screws, structural adhesives, etc. |
set |
1 |
Electrical system |
Electrical Configuration |
1. Standard national standard wire; incoming wire 4, air conditioner socket 4, general socket 2.5, lighting 1.5. (Circuits can be
customized to meet certification requirements of different countries) |
Set |
1 |
|
2. Circuit breaker system; 2P63A main switch 1 |
Set |
1 |
|
3. Lighting; LED ceiling light*2. |
Set |
1 |
|
4. Five-hole socket*4; standard three-hole socket*1 (socket standard can be configured according to customer requirements) |
Set |
1 |
|
Performance Parameters |
Insulation Performance |
λ=0.048 W/m·K |
|
Sound Insulation Performance |
Sound insulation level ≥ 30 dB |
|
Waterproof Performance |
360-degree bite, free drainage, 16 mm/min precipitation without leakage |
|
Floor Live Load |
2.0 KN/㎡, 400-500 kg per square meter |
|
Wind Resistance |
0.6 KN/㎡, withstand 11-12 level wind |
|
Fire Resistance |
A grade |
|
Earthquake Resistance |
≥ 8 level |
|
Temperature Range |
-45°C to 60°C |
Flexibility and customisation are key features of modular school buildings. These structures can be tailored to meet specific educational requirements, including classrooms, laboratories, libraries, offices, and multipurpose halls. The modular design allows for easy expansion or reconfiguration as the number of students grows or educational needs change. Additional units can be added seamlessly, making modular buildings a scalable and future-proof solution for schools.
Comfort and functionality are essential for productive learning environments. Modular school buildings are designed with efficient layouts, thermal insulation, and climate control systems to ensure a pleasant indoor environment. Large windows provide natural light, while well-planned interiors create an engaging and supportive space for both teaching and learning activities.
Cost efficiency is another major advantage of modular construction. By manufacturing building components in a factory setting, material waste is minimised and labour costs are reduced. The shorter construction timeline also leads to lower overall project expenses. Additionally, modular buildings can be relocated or repurposed, providing long-term value and flexibility for educational institutions.
Sustainability is increasingly important in modern construction, and modular school buildings offer environmentally friendly benefits. The controlled production process reduces waste and improves resource efficiency. Energy-efficient materials and systems help lower operational costs, while the ability to reuse and relocate buildings contributes to sustainable development practices.
Transportation and installation are streamlined with modular systems. The buildings are designed for efficient shipping and quick on-site assembly. Many modular school buildings come with pre-installed electrical systems, lighting, and interior fittings, reducing the complexity and time required for installation. This makes them especially suitable for remote areas or urgent expansion projects.
In addition to traditional schools, modular buildings are also used for temporary classrooms, training centres, and educational facilities in developing regions or emergency situations. Their versatility and adaptability make them suitable for a wide range of educational applications, from primary schools to higher education institutions.
Quality assurance is a key aspect of modular construction. Each module undergoes rigorous inspection and testing before leaving the factory, ensuring consistent quality and performance. This high level of quality control results in durable and reliable buildings that meet the expectations of educational institutions.
In conclusion, modular school buildings provide a fast, flexible, and cost-effective solution for modern educational infrastructure. Their rapid installation, customisable design, safety features, and sustainability make them an ideal choice for schools looking to expand or upgrade their facilities. As educational demands continue to evolve, modular construction is playing an increasingly important role in delivering high-quality learning environments.
