Items |
Specifications |
|
Main structure |
PEB Welded H-shaped steel or hot rolled steel, Q355 or Q235 |
|
Anti-rust protection |
Hot dip galvanized or anti-rust painting |
|
Purlins and girts |
Cold rolled C or Z steel, Q355 or Q235 |
|
Roof and wall |
Single layer steel sheet or sandwich panel |
|
Gutter |
Heavy duty galvanized steel |
|
Down pipe |
PVC |
|
Door |
Sliding door or roller shutter |
|
Windows |
PVC or aluminum alloy |
|
Other components available upon request. Please provide the following information for detailed custom design. |
Basic Building Parameters We Take into Consideration
Building Width:
No matter what primary framing system is used, the building width is defined as the distance from outside of eave strut of one
sidewall. Building width does not include the width of Lean-To buildings or roof extensions.
Building Length:
The longitudinal length of the building measured from out to out of end wall steel lines
Building Height:
Building height is the eave height which usually is the distance from the bottom of the main frame column base plate to the top outer point of the eave strut. When columns are recessed or elevated from finished floor, eave height is the distance from
finished floor level to top of eave strut.
Roof Slope (x/10):
This is the angle of the roof with respect to the horizontal .The most common roof slopes are 0.5/10 and 1/10. Any practical roof slope is possible.
End Bay Length:
The distance from outside of the outer flange of end wall columns to center line of the first interior frame column.
Interior Bay Length:
The distance between the center lines of two adjacent interior main frame columns.The most common bay lengths are 6m,7.5m and 9m.
Design loads:
Design for snow loads,earth quake loads,collateral loads.crane loads or any other loading condition,if required must be specified at the time of request for quotation.
Could you tell me your requirement for your steel structure project?
Basic design requirements and design Load,
1. Project site location;
2. Overall dimension (length*width*eave height in meters);
3. Mezzanine or not? How many kgs of load per square meter on mezzanine?;4. Single-layer steel sheet wall or sandwich panel wall;
5. Snow load if applicable;
6. Wind speed/load;
7. Interior column allowed or not;
8. Overhead crane needed or not, capacity?;
9. Any other particular requirements?
Building Purpose: we will recommend the best design for the purpose of the building.
A. Warehouse/Storage
B. Factory
C. Agriculture Barn
D. Retail Store
E. Repair/Mechanic Shop
F. Office Space
G. Medical Warehouse
H. Animal Farm (please confirm what kind of animal)

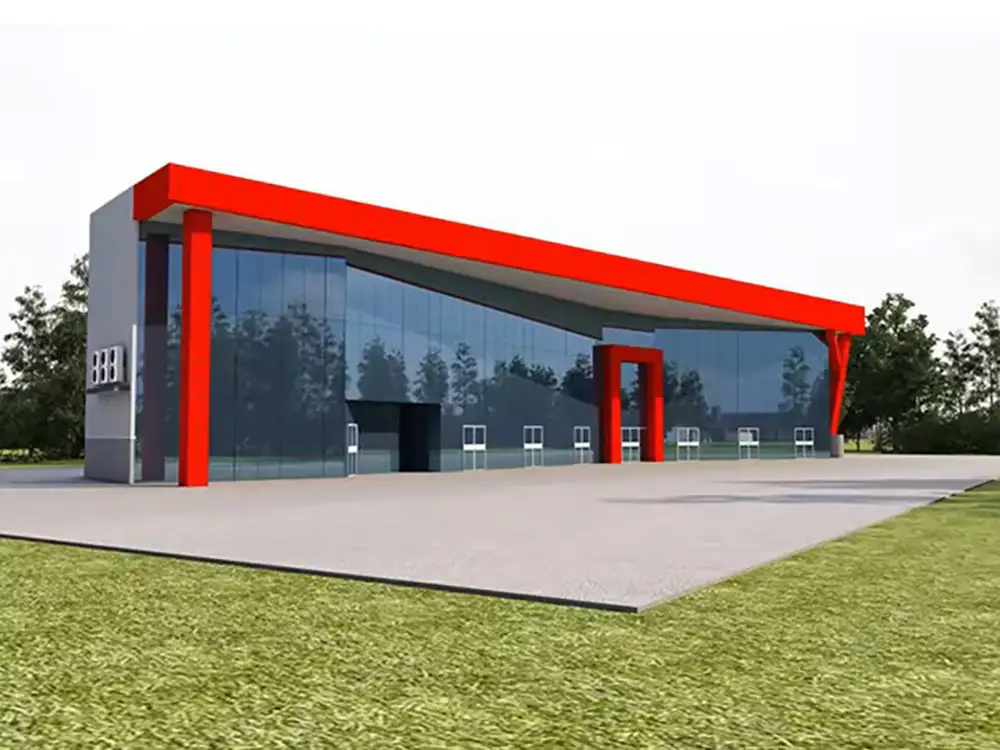

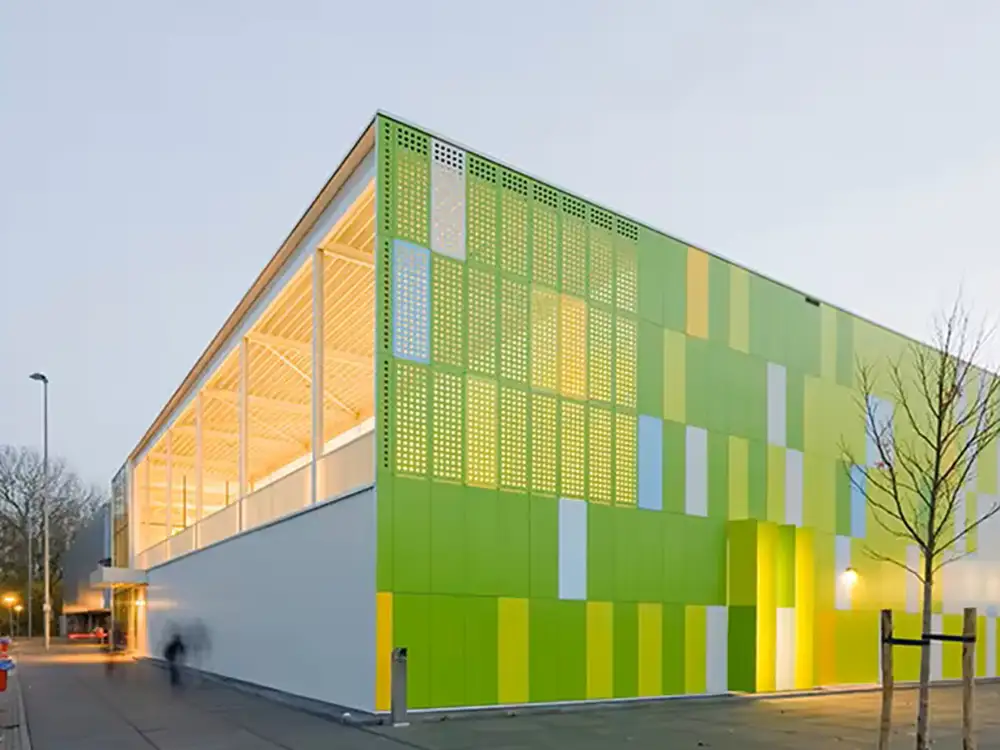

Clear span metal buildings have become an increasingly popular choice for a wide range of industrial, agricultural, and commercial applications. Their open interior design, structural strength, and cost efficiency make them ideal for projects that require maximum usable space without internal columns or obstructions.

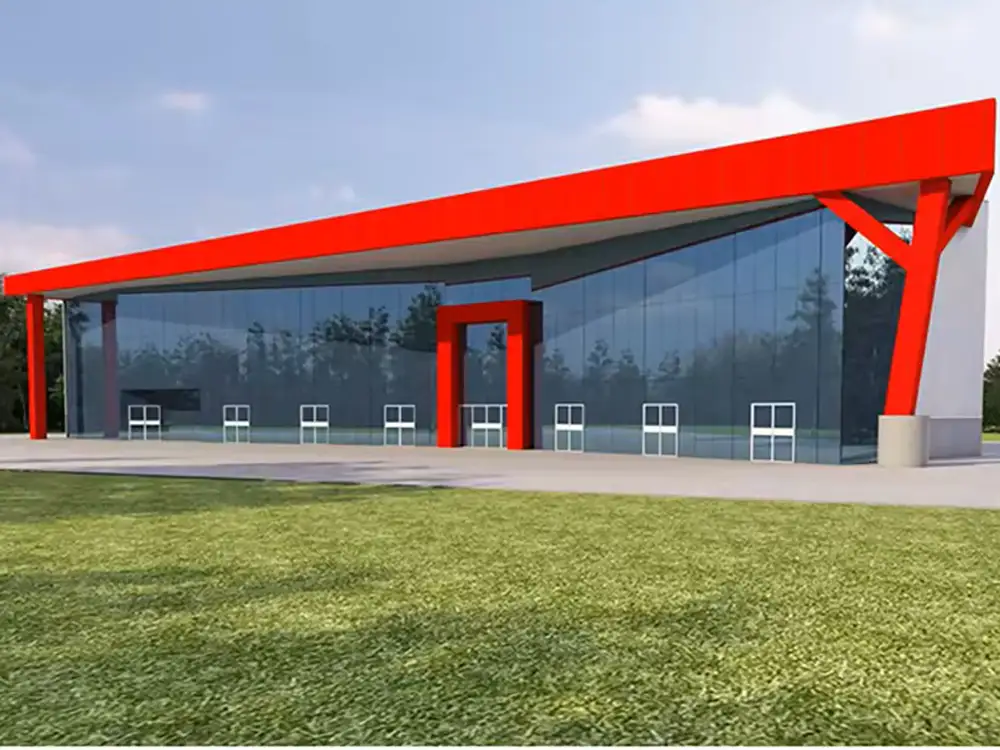

A clear span metal building is specifically engineered to provide a large, unobstructed interior area. Unlike traditional structures that rely on internal support columns, clear span buildings use advanced steel framing systems to distribute loads evenly across the structure. This design allows for greater flexibility in layout and maximises the available floor space, making it suitable for warehouses, workshops, aircraft hangars, sports facilities, and agricultural storage.
One of the primary advantages of clear span metal buildings is their versatility. These structures can be customised to meet specific operational requirements, including width, length, height, and internal configurations. Whether you need a compact storage facility or a large-scale industrial building, clear span solutions can be tailored to your exact needs.
Durability is another key benefit. Constructed from high-quality steel, clear span metal buildings are designed to withstand challenging environmental conditions, including strong winds, heavy rainfall, and temperature variations. The steel components are often treated with protective coatings to prevent corrosion, ensuring long-term performance with minimal maintenance.
From a construction perspective, clear span metal buildings offer significant advantages in terms of speed and efficiency. The prefabricated components are manufactured in a controlled factory environment, ensuring consistent quality and precision. Once delivered to the site, the building can be assembled quickly, reducing construction time and labour costs.
In addition to structural efficiency, these buildings are also highly cost-effective. The elimination of internal columns not only maximises usable space but also reduces material requirements and simplifies the foundation design. This leads to overall savings in both construction and long-term operational costs.
Energy efficiency is another important consideration. Clear span metal buildings can be equipped with insulated panels, ventilation systems, and natural lighting solutions to improve indoor comfort and reduce energy consumption. Skylights and wall panels can be incorporated into the design to allow natural light to enter the building, creating a more pleasant working environment.
For agricultural applications, clear span buildings provide ideal solutions for storing machinery, crops, and livestock. The open layout allows for easy movement of equipment and efficient use of space. In industrial settings, these buildings are commonly used as manufacturing facilities, storage warehouses, and distribution centres.
Customisation options are extensive. Clients can choose from a variety of roofing systems, wall cladding materials, door types, and interior fittings. Additional features such as mezzanine floors, office spaces, and insulation systems can be integrated into the design to enhance functionality.
Transport and installation are straightforward due to the modular nature of the components. The building parts are designed for efficient packaging and shipping, making them suitable for both domestic and international projects. On-site assembly requires minimal specialised equipment, allowing for quick deployment even in remote locations.
Safety and compliance are critical in modern construction. Clear span metal buildings are designed to meet international standards and can be adapted to comply with local building regulations. Structural integrity, fire safety, and load-bearing capacity are carefully considered during the design and manufacturing process.
In conclusion, clear span metal buildings offer a practical and efficient solution for a wide range of applications. Their combination of open space, structural strength, customisation, and cost-effectiveness makes them a preferred choice for businesses and organisations worldwide.
If you are looking for a reliable supplier of clear span metal buildings, we provide high-quality products and professional support to help you achieve your project goals. Contact us today to learn more about our solutions and how we can meet your specific requirements.
