Two Storey T House Technical Parameters

Two Storey T House Steel Structure-Single floorplan high quality cheap portable houses,popular prefabricated bungalow,comfortable china prefabricated homes.

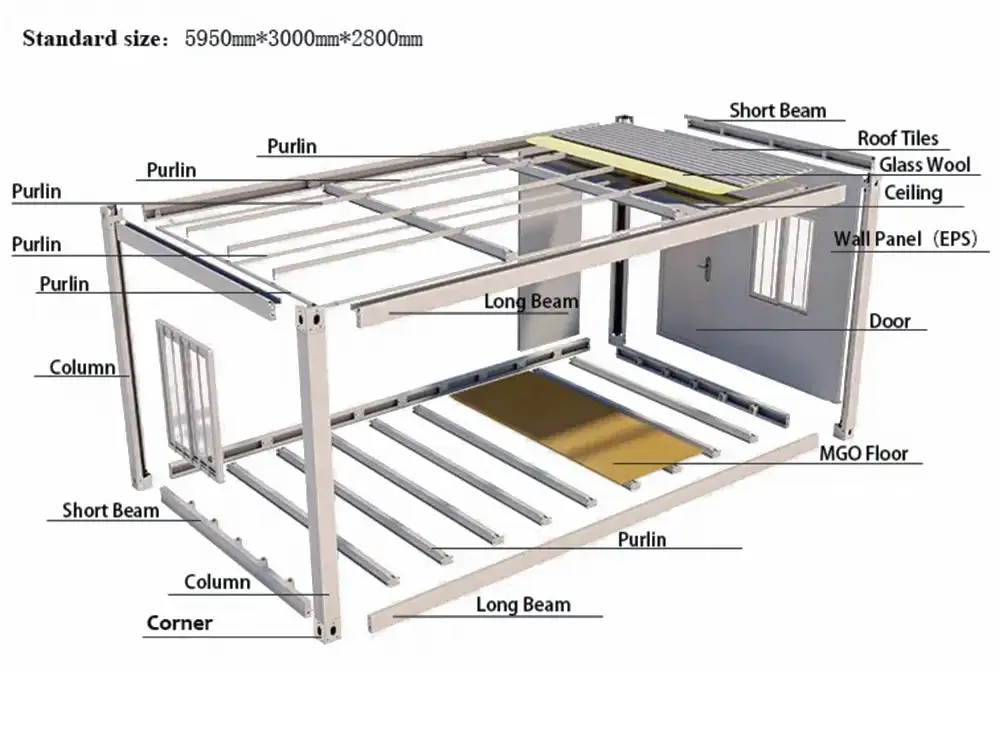

Steel Structure - Single floor plan
1 Pillar 80*80/100*100/100*150 or according design 1.8/2.0mm or according design
2 Ring beam  60*80/80*80 or according design 1.5/1.8mm or according design
3 Roof Beam 60*80 + 50*30*1.2  1.8/2.0mm or according design
4 Roof Purlin 40*80 Angle steel / 8#C Steel 1.5/1.8mm or according design

Steel Structure - Double floor plan
1 Pillar 80*80/100*100/100*150 or according design 1.8/2.0mm or according design
2 Ring beam  60*80/80*80 or according design 1.5/1.8mm or according design
3 Roof Beam 60*80 + 50*30*1.2 or according design 1.8/2.0mm or according design
4 Roof Purlin 40*80/60*80/ 8#C Steel or according design 1.5/1.8mm or according design
5 Floor Beam 100*100/100*150 or according design 1.8/2.0mm or according design
6 Floor Purlin 8#C/10#C/12#C Steel or according design 1.8/2.0mm or according design

Encirclement system
1 Wall panel EPS/Glass wool/Rock wool sandwich panel
EPS cement sandwich panel
50/75/100mm
2 Roof panel EPS/Glass wool/Rock wool sandwich panel 50/75mm
3 Door Sandwich panel door/Steel door according design
4 Window PVC/aluminum sliding/shutter window according design
