Steel Building Building Technical Parameters

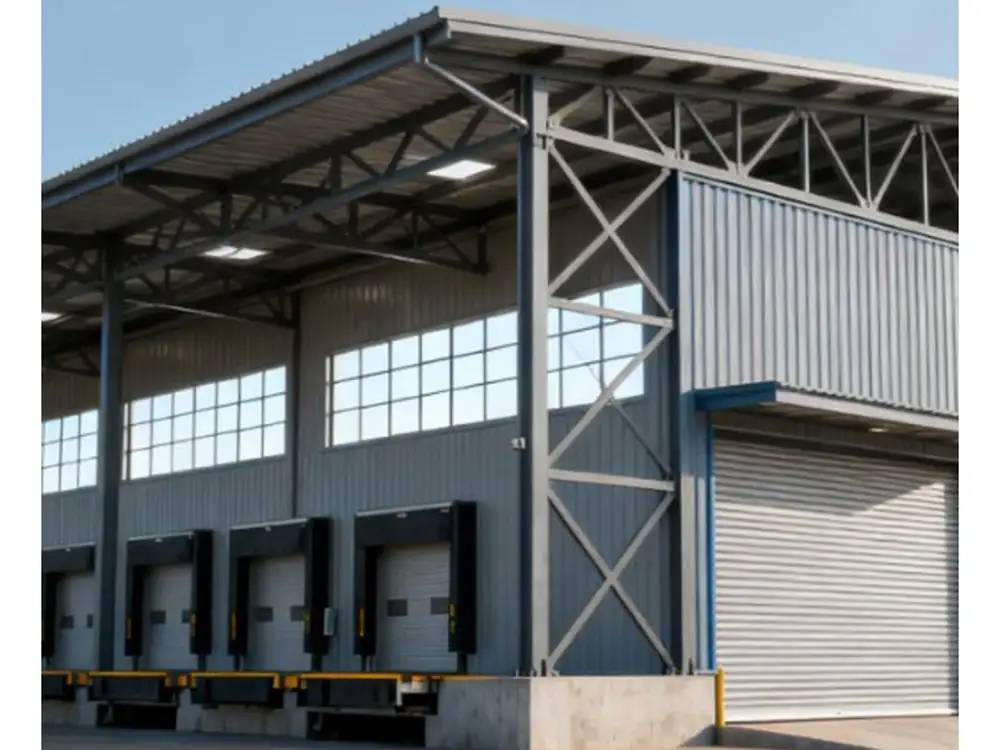

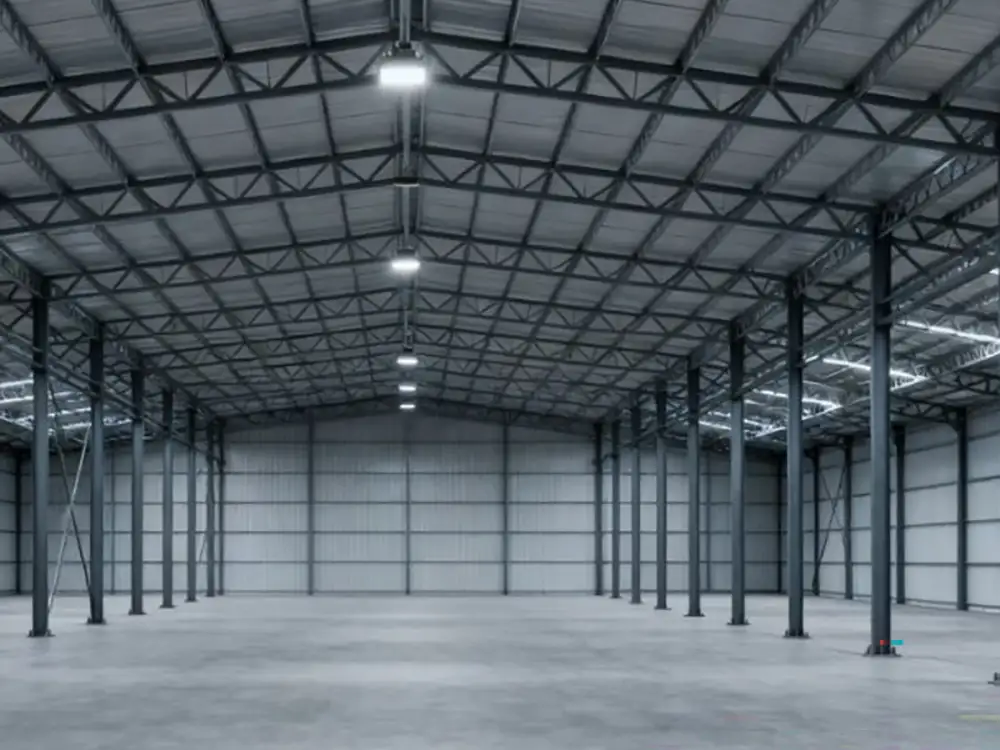

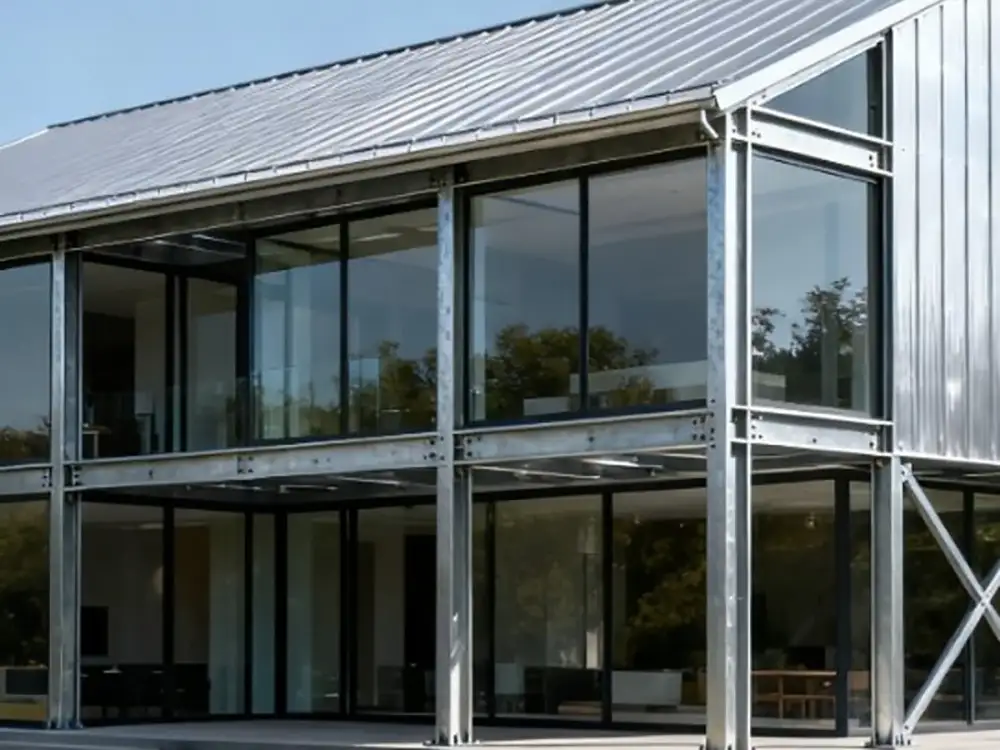

Steel Building, Large Span Prefabricated Steel Structure Frame Pre-Engineered Metal Building, for Warehouse, Villa, Dormitories, Temporary Offices, Workshop.

the detail information is as follows:

No. Sort Name Specification:
1 Specification length No limited
2 Width Less than 11m
3 Wall height 2600mm/2800mm
4 Clear height 2600mm/2800mm
5 Roof slope 15°
6 Standard accessory Wall board 75mm thickness double color-steel sandwich panel with polystyrene foam inside. Heat Insulated coefficient is 0.041w/m.k. Heat transfer coefficient is 0.546w/ m².k.
7 False ceiling 75mm thickness double color-steel sandwich panel with polystyrene foam inside. Heat Insulated coefficient is 0.041w/m.k. Heat transfer coefficient is 0.546w/ m².k.
8 Roof board color steel corrugated sheet, 0.5mm thickness
9 Outside door Security door, single door with dimensions of 900*2100mm, furnished with a handle lock with 3keys. Doorframe is made of 1.2mm steel, and door is made of 0.7 mm steel, 90mm thick rock wool insulation foam.
10 Inside door SIP, single door with dimensions of 750*2000mm, furnished with a cylinder lock with 3keys. Doorframe is made of aluminum, 50mm thick EPS insulation foam.
11 Window(W-1) PVC, white color, with dimensions of 1200*1200mm, glazed with glass in a thickness of 5mm, two bay fixed, and two bay sliding, supplied with fly screen.
12 Window(W-2) PVC, white color, with dimensions 500*500mm, glazed with glass in a thickness of 5mm, casement opening, supplied with fly screen.
13 Channel Galvanized Steel Plain Sheet press moulding Material: Q235. Painted
14 Post Square steel tube Material: Q235. Painted
15 Purline Square steel tube Material: Q235. Painted
16 Roof truss Square steel tube Material: Q235. Painted
17 Decoration and connection color steel sheet, 0.35mm thickness
18 Option Decorative floor PVC, laminated or ceramic tile
19 Drainage system Provided plan, design and construction
20 Electric system Provided plan, design and construction
21 Technical parameter Bearing load 30kg/m2
22 Wind pressure: 0.45KN/M2
23 Fire proof B2 grade
24 Resistant temperature -20 ºC to 50º


Advantages:
 Environment friendly: All the materials of steel warehouse is made of steel, which can be reused many times.

Good appearance: Warehouse with color steel sheet wall panel and roof panel is beautiful and tidiness.

 Quality: Steel structure warehouses with steel structure frame and colorful steel sheet panel is very fastness.

Good drainage system with cold bend steel sheet gutter and pvc downpipe

 Connection: All the steel materials were connected with high strength bolts, shearing bolts, bracket bolts etc is easy to install and dismantle.

Short delivery time. All the materials load in containers, ship abroad.

Short production time: The warehouse with flexible design was devided into a number of steel structure parts, be manufactured by skilled workers in advanced machines.

 Installation: If needed, our engineers will provide technical guidance onsite.
