K-Type Prefabricated House Technical Parameters

K House, Modular prefab house is a kind of light steel structure modular house with the color steel sandwich panel. 2, Wind load and earthquake resistance: The steel structure makes the house resisting heavy wind of 120km/h and 7 gr.

K Type Steel Prefab House

A Modular K-type house is a modular house whose width and length can be extended by adding a number of 1820mm units. The heat-insulated material can be EPS, Rock wool, Glass wool, or other sandwich panels. All the components are standard and prefabricated with the advantage of assembling and disassembling easily. Eight skilled workers can finish 100m2 in 8 hours. One 40HQ container can load about 250m2 house body materials. The waterproof design of the steel structure and heat insulation material ensures the house resists heavy wind load of 0.45KN/m2 and 7-degree seismic intensity.


All the components are standard and prefabricated with the advantage of assembling and disassembling easily. The life span of the house is 15 years. Ideal for house applications,  temporary office, dormitory, classrooms, meeting room, warehouse, shops, etc. In the construction industry, the government purchase for residences, military housing, and another purpose. Characterized by low cost, durable structure, convenient relocation, easy to assemble and disassemble, environment protection, etc.

More details:
1, Modular prefab house is a kind of light steel structure modular house with the color steel sandwich panel.
2, Wind load and earthquake resistance: The steel structure makes the house resisting heavy wind of 120km/h and 7 grade earthquake.
3, Fire proof and heat insulation: Color steel sandwich panel has a good fire proof and heat insulation performance for the characteristic of the color steel sheet and polystyrene material.
4, Easy assemble and disassemble: All the components of the house are prefabricated before leaving the factory, with the advantage of assembling and disassembling easily. The location of the panels can be exchanged with or without windows and doors.
5, Low cost: The completely knock-down of the house components can save more space of the container and make the cost of house lower.
6, Fast installation: Six skilled workers can finish installation of 240m2 in 3 days for the light steel structure.
7, Long life span: The components of the house can be used repeat so the shelf life is over 20 years without any building garbage.
8, Waterproof: The waterproof system on the roof makes the house a good sealing effect.

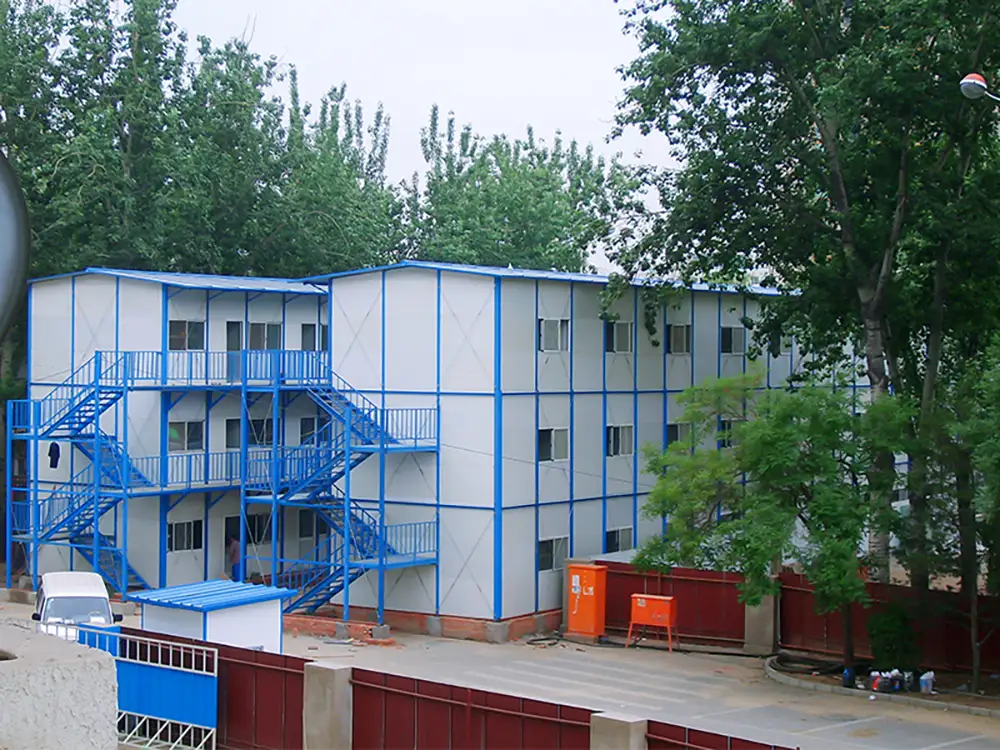

9, Multi-stories: 1-3 stories design can provide more flexibility to the customer .
10, Varies ceilings and floors: The mineral wool acoustic ceiling, cement ceiling, partition and laminated flooring accessories are optional for customer.
11, Services: We can provide the service of installation, supervision and training by extra. It has a low cost and good ability to assemble at site, so it can provide for accommodation and office quickly and large quantity.

Product Parameters of K Type Steel Prefab House

  • Product Parameters

    No. Classify Name Technical Parameter
    1 Size Length NK+160(n=4, 5, 6^ ) K is modular(1K=1820mm)
    2 Width 2K≤ Width≤ 6K, K is modular(1K=1820mm)
    3 Wall Height single floor height less than 6K
    4 Roof Slope 1: 10, 1: 5
    5 Interior Net Height ≥ 2780mm(not include false ceiling size)
    6 Floor ≤ 3 floors
    7 Standard Ground Beam C80# profiled steel
    8 Post double C80# profiled steel
    9 Roof Beam Herringbone Trussed Beam (jointing by C80# profiled steel)
    10 Roof Purlin 40# angle iron
    11 Wall Panel 50, 75mm thickness double color steel sandwich panel
    12 Roof Panel 50, 75, 100mm thickness double color steel sandwich panel
    13 Exterior Door Steel frame sandwich panel door, szie: 820mm*2000mm
    14 Interior Door Sandwich panel door, size: 750*2000mm
    15 Window PVC sliding window, size: 1740mm*925mm
    16 Floor 15mm thickness plywood
    17 Options Flase Ceiling mineral wool acoustic panel, aluminium buckle panel
    18 Window PVC casement window, PVC top hung window, aluminium sliding window, aluminium alloy casement window, blind window
    19 Door Single opening security door, size: 900mm*2100mm;
      double opening security door, size: 1740mm*2100mm; compound wooden door
    20 Interior Electrical supply plan, design and construction
    21 Water Plumbing & Sanitary supply plan, design and construction
    22 Floor 15mm bamboo panel, building templet board
    23 Floor Decoration Material Ceramic tiles, PVC floor, compound wooden floor
    24 Frame Roof Dead Load 30kg/Sqm
    25 Roof Live Load 50kg/Sqm
    26 Floor Dead Load 50kg/Sqm
    27 Floor Live Load 200kg/Sqm
    28 Wind Resistance 11 degree (105km/h)
    29 Fireproof Degree Maintenance wall panel is nonflammable material, B1 degree;
    Floor plywood could reach B1 degree after making fireproof process.
    30 Earthquake resistant intensity 7degree


Advantages of K Type Steel Structure Prefab House

1. Structure is reliable: Light steel structure system is safe and reliable, satisfied modern architecture concept.

2. Easy assembly and disassembly: The house can be assembled and disassembled many times, used repeatedly. It just need simple tools to assemble. Each worker can assemble 20-30square meters every day. 6 worker can finish 300sqm prefab house in 2 days.
3. Beautiful decoration: The prefab house is beautiful and grace, have bright and bland color, flat and neat board, with good decoration effect.
4. Flexible layout: Door and window can be assembled in any position, partition wall panel can be assemble in any transverse axes sites. Stair is assembled in outside.
5. Using life: All the light steel structures have antisepsis-spraying treatment. The normal using age are above 15 years.
6. Environmental protection and economy: Prefab house design is reasonable, easy to assemble and disassemble, used circularly, low wastage, without building rubbish. Average using cost is less than other kinds of building annually.
