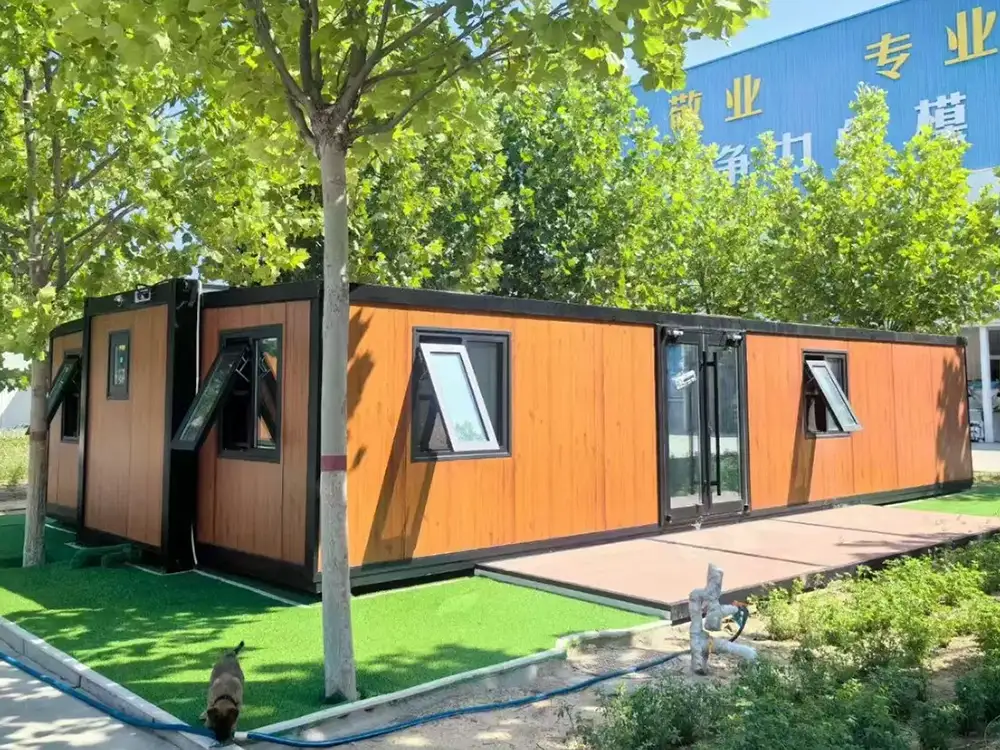

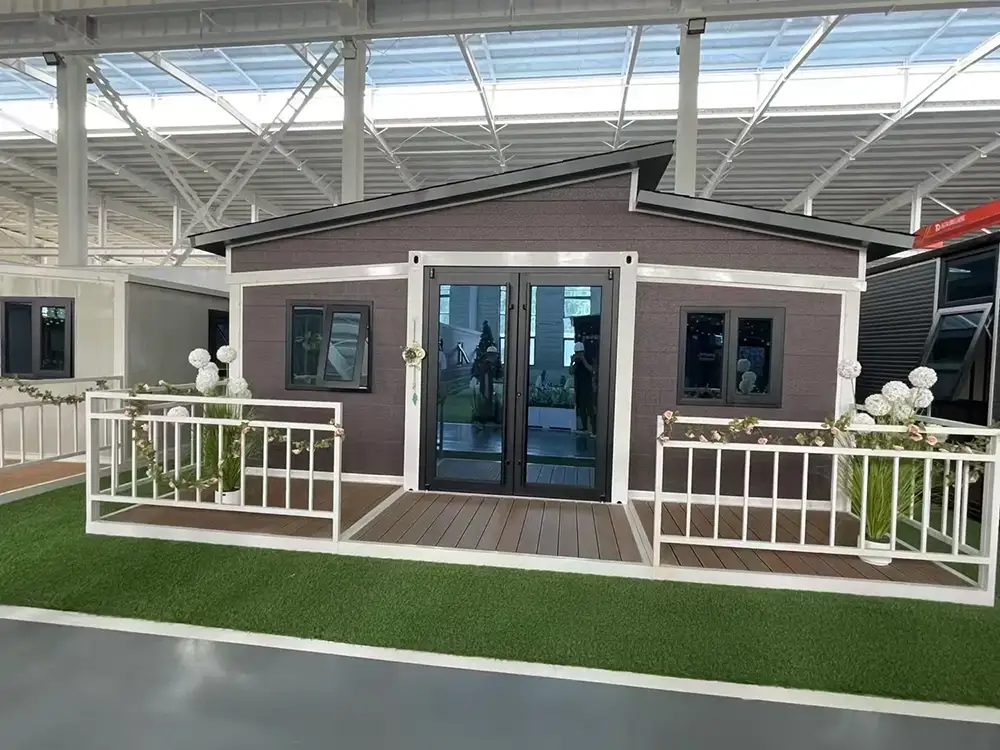

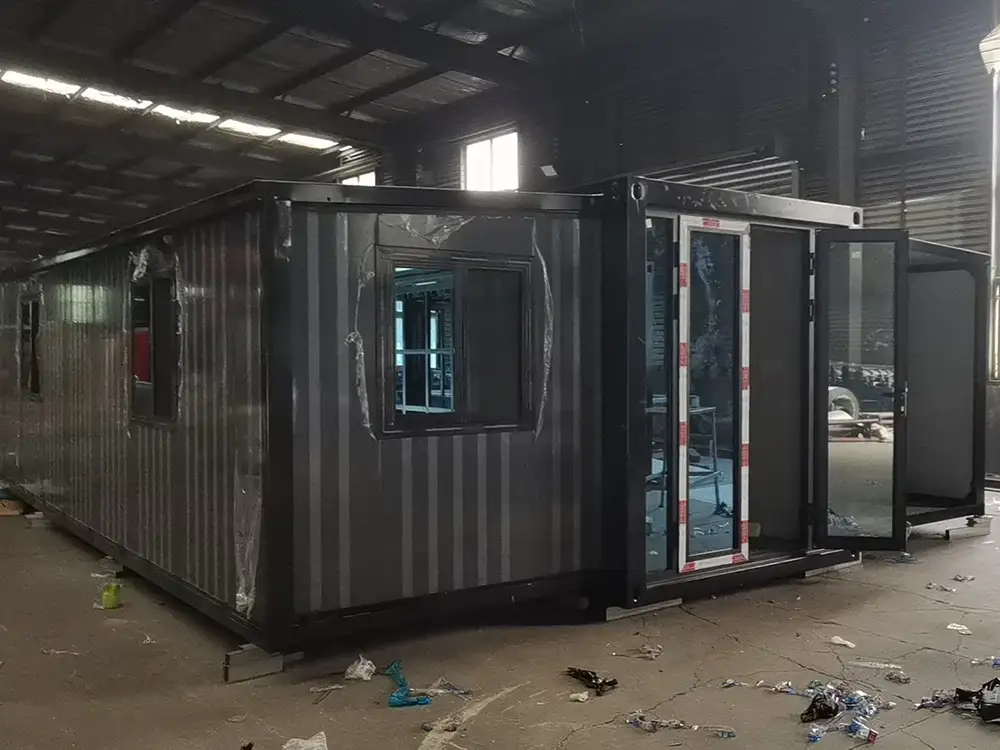

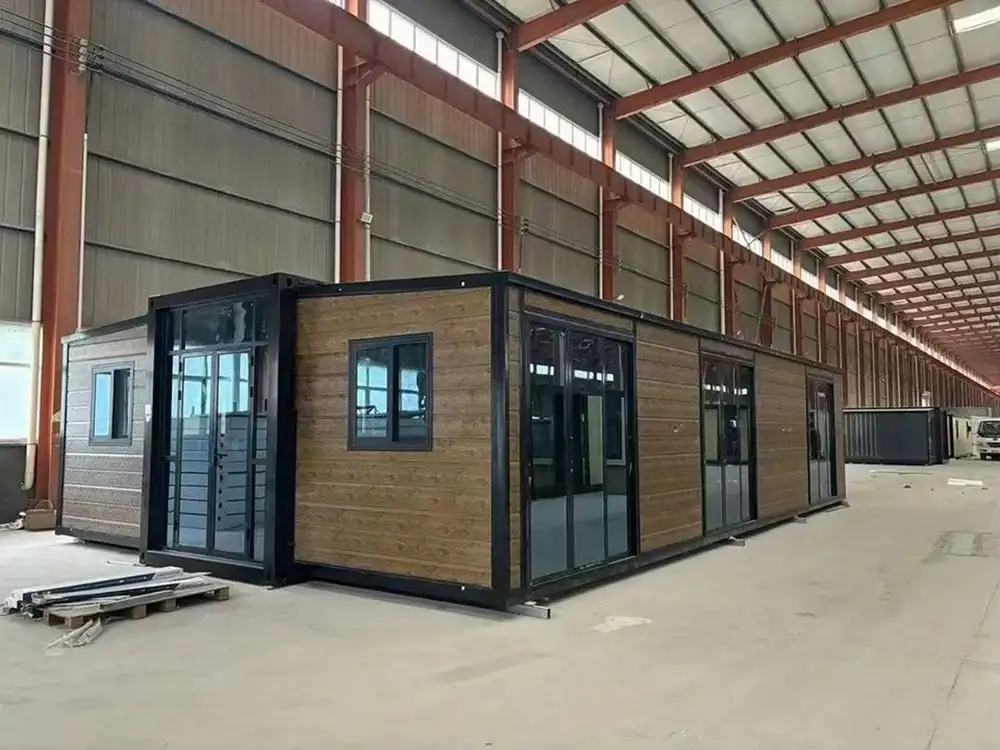

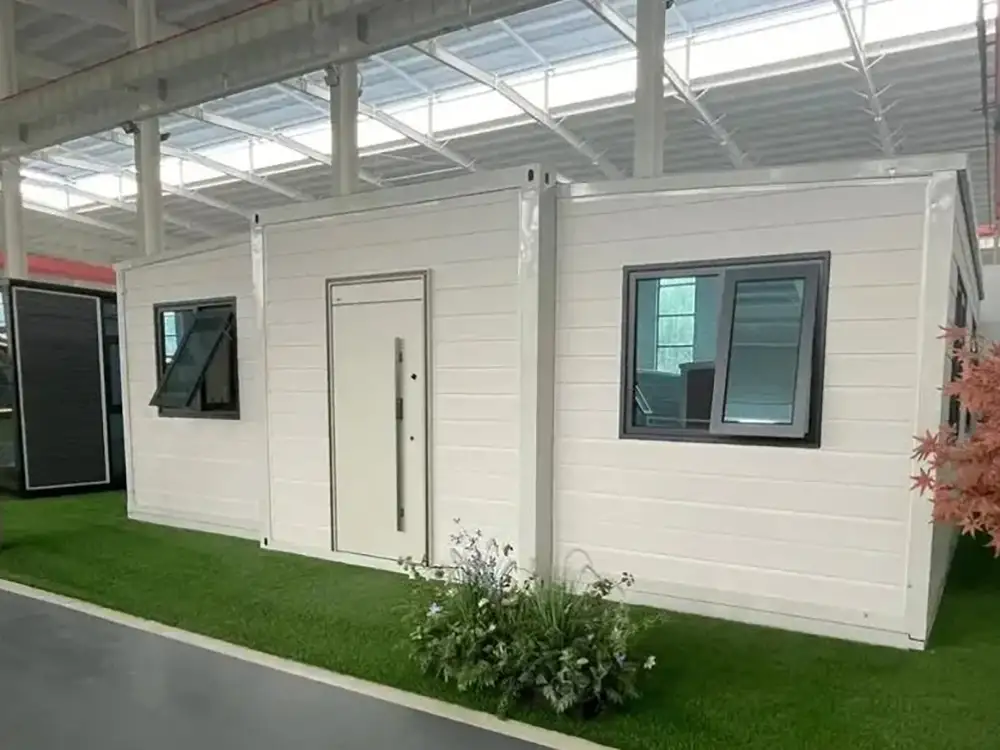

40 Feet Shipping Container House Technical Parameters

Dry Container Rental - 20'GP, 40'GP, 40'HC,40 Feet Shipping Container Hous,External and internal dimensions of 40' HIGH-CUBE container. Sea containers size and capacity by types..

Detailed Specification


Specification 1) 20ft: 6055*2435*2896mm
2) 40ft: 12192*2435*2896mm
3) Roof Type: Flat roof with organized internal water draining design
4) Storey: ≤3
Design parameter 1) Life span: up to 20years
2) Floor Live load: 2.0KN/m2
3) Roof Live load: 0.5KN/m2
4) Wind load: 0.6KN/m2
5) Earthquake-resistance: Grade 8, Fire-proof: Grade 4
Wall panel 1) Thickness: 75mm fiber glass sandwich panel, effective width: 1150mm
2) Exterior steel sheet (standard configuration): Corrugated 0.4mm       Aluminum-zinc color steel sheet, PE finishing coat, Color: white, Aluminum-zinc thickness≥40g/m2
3) Insulation layer (standard configuration): 75mm Fiber glass, density≥50kg/m3, Fire-proof standard: grade A non-flambable
4) Interior steel sheet(standard configuration): Flat 0.4mm Aluminum-zinc color steel sheet, PE finishing coat, Color: white, Aluminum-Zinc thickness≥40g/m2
Roof system 1) Steel frame & accessories: Main roof frame: cold formed steel, thickness=2.5mm, galvanized. with 4pcs galvanized lifting corners. Roof purlin: C80*40*15*2.0, galvanized. Q235B steel
2) Roof panel: 0.4 or 0.5mm thickness Aluminum-zinc color steel sheet, PE finishing coat. Color: white, Aluminum thickness≥70g/m2, 360° full connection
3) Insulation: 100mm thickness Fiber glass with aluminum foil, Density=14kg/m3, Grade A fire-proof, nonflammable.
4) Ceiling board: V-170 type, 0.5mm Aluminum-zinc color steel sheet, PE finishing coat. Color: white, Aluminum-zinc thickness≥40g/m2.
5) Industrial socket: Fixed in explosion-proof box at the top beam of the short side, with 1 main power plug for power connection between containers
Corner pillar 1) Cold rolled steel: 4pcs pillar with same dimension, thickness=3mm, steel grade Q235B.
2) Corner pillar and main frame are joined by hexagon socket head bolt, strength: grade 8.8. Filled with Fiberglass insulation
Floor System 1) Steel structure & accessories: Main floor frame: cold formed steel, thickness 3.5mm, galvanization; Floor purlin:C120*40*15*2.0, galvanized. Q235B steel. Standard container is Without forklift hole, it can be added according to customer's requirement.
2) Insulation (optional): 100mm thickness Fiber glass with aluminum foil, Density=14kg/m3. Flammability:grade A, nonflammable.
3) Bottom covering (optional): 0.25mm color steel sheet, Zinc thickness≥70g/m2.
4) Floor board: 18mm thickness fiber cement board, Fire-proof:grade B1. Density≥1.3g/cm3
5) Interior Flooring: 1.5mm thickness PVC leather, Blue marble color
Door & Window 1) Insulated light steel door: Entrance door is W850*H2030mm, Toilet door is W700*H2030mm.
2) PVC sliding window, double glass 5mm thickness, with mosquito screen and security bar. Standard window: W800*H1100mm(for 2.4meter's container), W1130*H1100mm(for 3 meter's container), Toilet window: W800*H500mm
Electric system 1) Rated power: 5.0 KW, suggestion external power source ≤3 in series.
2) Technical parameters: CEE industrial plug, socket voltage 220V- 250V, 2P32A,  Fixed in explosion-proof box at the top beam of the short side, the electric cable in the roof is protected by PVC pipe with CE certification; Using IP44 standard power distribution box.
3) Electrical data: main power cable is 6 mm2, AC cable is 4 mm2, socket cable is 2.5 mm2, lighting & switch cable is 1.5 mm2. Five sockets, 1pc AC socket of 3holes 16A, 4pcs socket of 5holes 10A. 1pc single connection switch, 2pcs double tube LED light, 2*15W.
Painting 1) Primer painting: epoxy primer, Zinc color, thickness: 20 - 40 μm.
2) Finishing paint:  Polyurethane finishing coat, white color, thickness: 40-50 μm. Total paint film thickness≥80μm. Galvanized components, galvanized layer thickness≥10μm (≥80g/m2)
